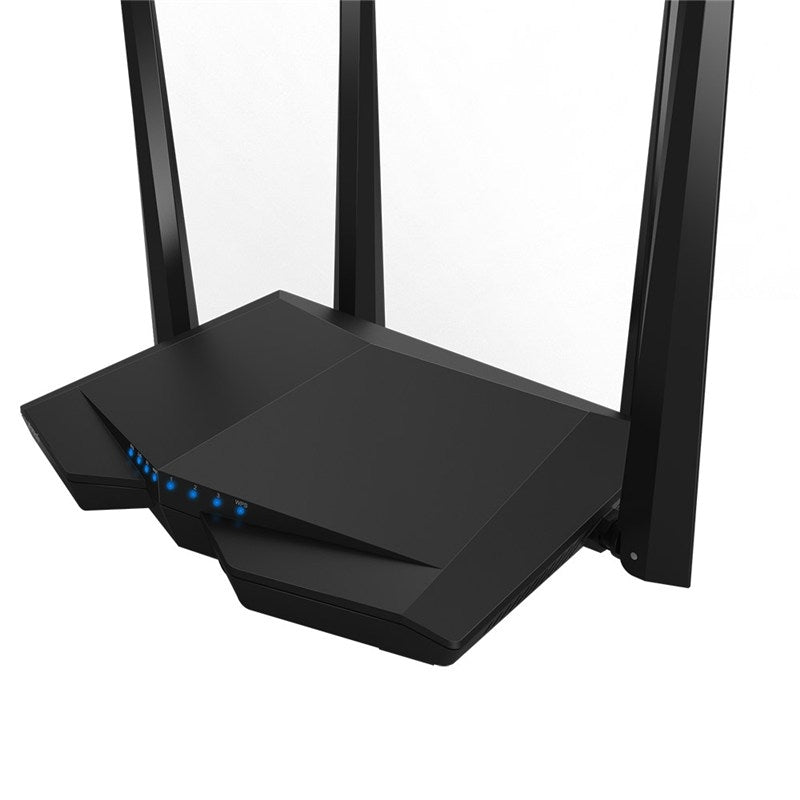

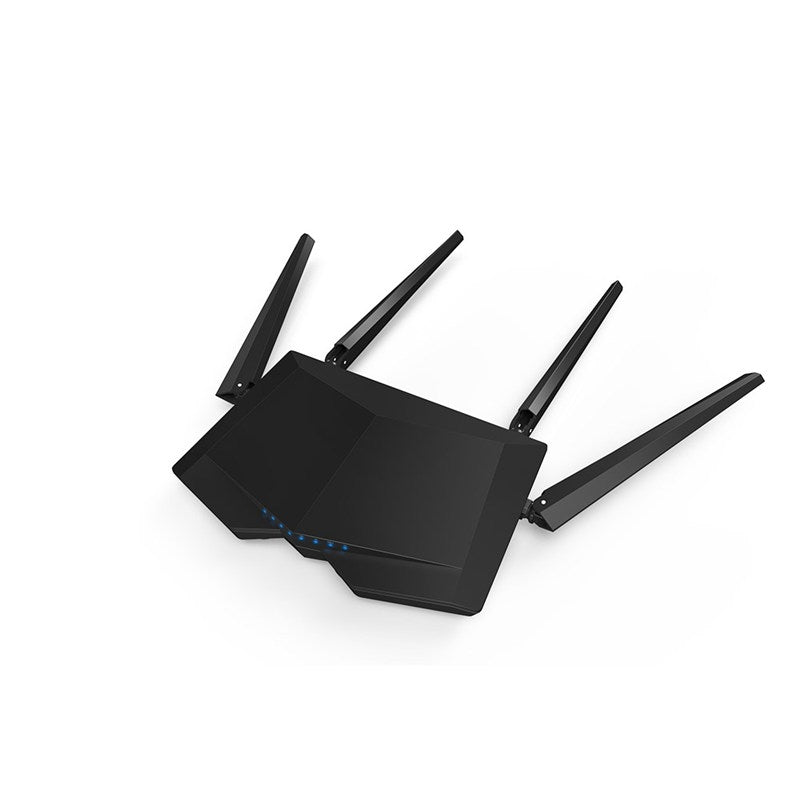

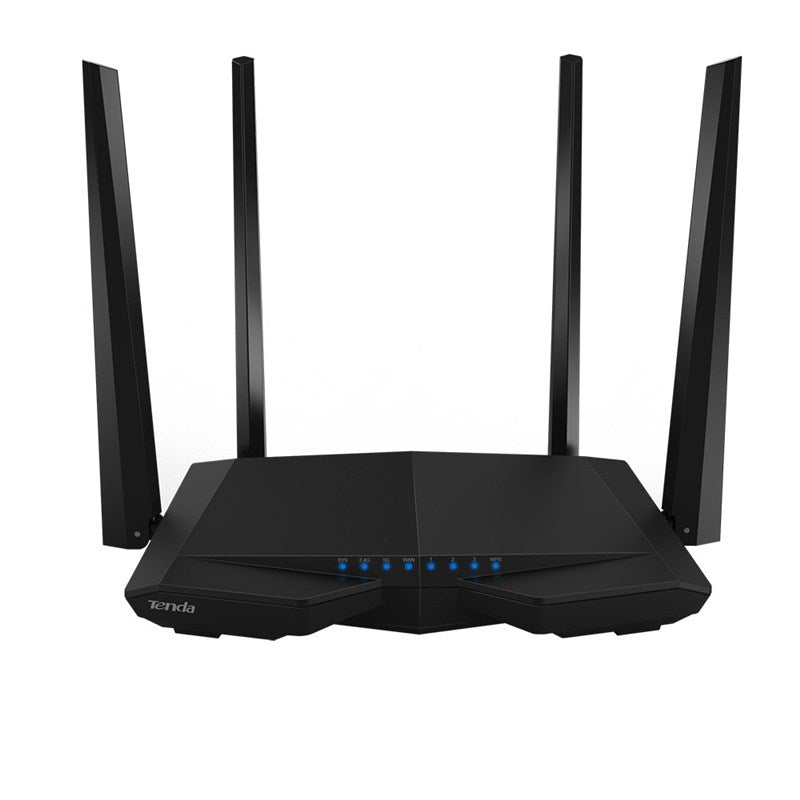

NNEDSZ AC6 AC1200 Smart Dual-Band Wireless Router
AC6 is a Smart Dual-band WiFi Router with strong signal and stable performance. It supports 5th generation Wi-Fi standard 802.11ac and the concurent dual-band speed is up to 1167Mbps. 1GHz high performance CPU offers fast stable performance. AC6 has 2x through-wall ability than normal routers with its independent power amplifiers, beamforming Intelligent technology and 4x 5dBi high gain antennas. You can enjoy lag-free gaming and uninterrupted video streaming anytime anywhere. Additionally, AC6 supports smart power saving technology, App remote management, creates a low-power consumption and smart eco-friendly life for your whole family.
Certification:CE/FCC/RoHS
Standard & Protocol:IEEE802.3, IEEE802.3u
Interface:
1 10/100Mbps WAN port
3 10/100Mbps LAN ports
Antenna:4 x 5dBi external antennas
Button:1 x WiFi on/off, 1 x Reset/WPS button
Power:
Input:100-240V?50/60Hz, 0.2A
Output:DC 12V/1A
Internet Connection Type:
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia)
Dimension:220 x 141.5 x 49mm
LED indicator:1 x WAN, 1 x LAN, 1 x Wi-Fi/WPS, 1 x SYS
Wireless Standards:
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
Data rate:
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Frequency 2.4 and 5GHz
Transmit Power:
CE:
<20dBm(2.4G)
<23dBm(5G)
FCC:
<30dBm
Basic Features:
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
Wireless Security:
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption
Operating Mode:
Wireless Router Mode
Universal Repeater Mode
WISP Mode
DHCP Server:
DHCP Server
DHCP Client List
DHCP Reservation
Virtual Server:
Port Forwarding
DMZ Host
UPnP
Security:
Client Filter
Parental Control(support black list and white list)
Remote Web Management
Firewall:
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet
DDNS:
Support DynDNS, No-ip, 3322.org, Oray.com, 88ip
VPN IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client
Features:
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Other:
Bandwidth Control
Guest Network
IPTV
MAC Clone
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Temperature:
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -40°C ~ 70°C.
Humidity:
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Default Settings:Default Access: tendawifi.com
Special Features:
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App
Package Content:
1 x AC1200 Smart Dual-Band WiFi Router
1 x Power Adapter
1 x Install Guide
1 x Ethernet Cable
