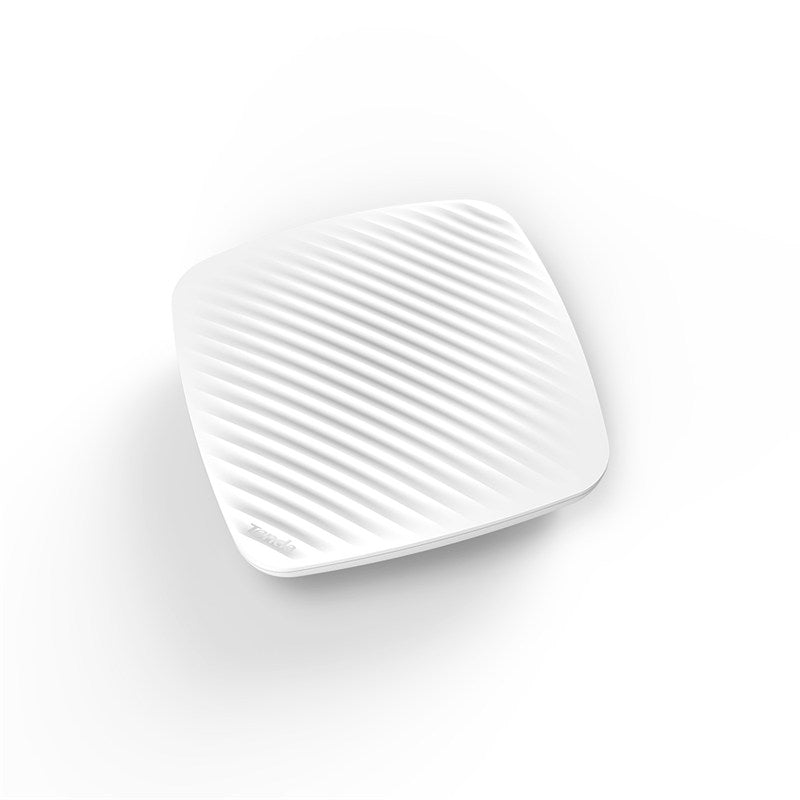

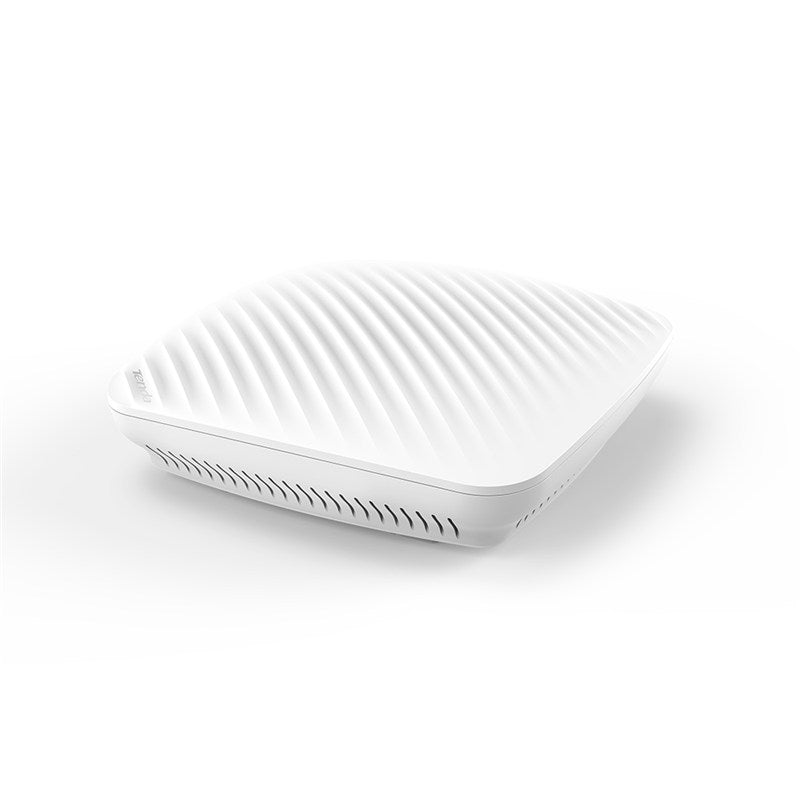

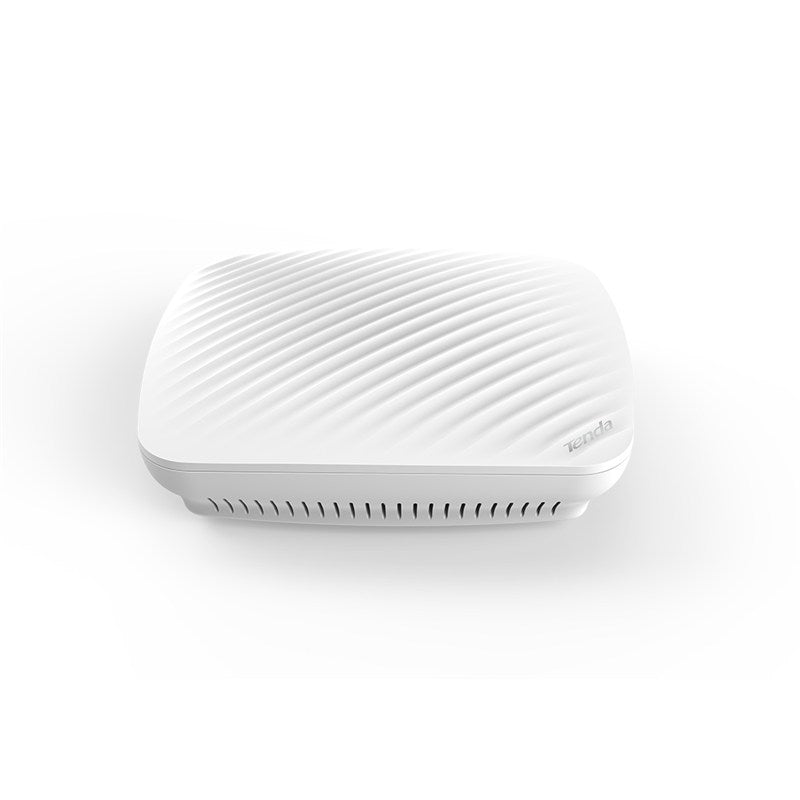

NNEDSZ i9 300Mbps Wireless N Ceiling Mount Acess Point
i9 is a wireless access point specially designed by tenda for office, bar, coffee shop and other indoor environments.It works in the 2.4GHz band, and the wireless rate can reach 300Mbps.Built-in 2 high gain omni-directional MIMO antennas which give powerful WIFI signal penetration and coverage.At the same time, the device built-in power adjustment mode, the user can adjust the transmitted power according to the actual environment.The device adopts standard 802.3af PoE power supply, which can guarantee the users to realize long-distance network power supply without changing the original power network.With simple design,it can be installed directly on the wall or the ceiling,it do not affect the original building structure.And it support TENDA whole series wireless controller to management and deployment.
Mode | i9 |
Mounting options | Ceiling and Wall Mount |
Dimension | 184 × 184 × 38 |
Frequency Band | 2.4GHz |
Wireless Standards | 802.11b/g/n |
PHY Data Rates | 1-300Mbps |
Ethernet Ports | 1 10/100Base TX |
DC Power Interface | 1 DC Power Interface |
Reset Button | 1 |
LED indicator | 1 Sys |
Power Consumption | <8W |
Power Supply | 802.3af&12V1A DC |
SSID Numbers | 4 |
WEP | 64/128 |
WPA2-PSK | AES/TKIP |
WPA-PSK | AES/TKIP |
WPA | Support |
WPA2 | Support |
Operating Mode | AP.Client |
SSID Hidden | Support |
Access Control | MAC address filtering |
Adjustable Transmission Power | Support |
AP Isolation | Support |
User Access Limit | Supports wireless client number constraints |
Client Access Restrictions | Support wireless client RSSI threshold Settings |
WMM | Support |
VLAN and SSID Bindings | Support |
Timing Reboot | Support |
Cycle Restart | Support |
Equipment Restart | Support from Web UI or AP Controller |
Firmware Upgrade | Support from Web UI or AP Controller |
Equipment Management | Web Management |
Restore Factory Settings | Support from Web UI or AP Controller |
Backup Configuration | Support |
Restore Configuration | Support |
Transmit Power | 20±1.5dbm |
Network Diagnoses | Support ping |
Logs | System log view |
Managed By Controller | M3 |
Default Settings | Default Login IP: 192.168.0.254 Default User Name: admin; Default Password: admin |
Temperature | Operating Temperature: -10°C ~ 40°C; Storage Temperature: -30°C ~ 70°C |
Humidity | Operating Humidity: 10%~90% non-condensing; Storage Humidity: 10%~90% non-condensing |
Product Contents:
1 x Tenda i9 300Mbps Wireless N Ceiling Mount Acess Point
