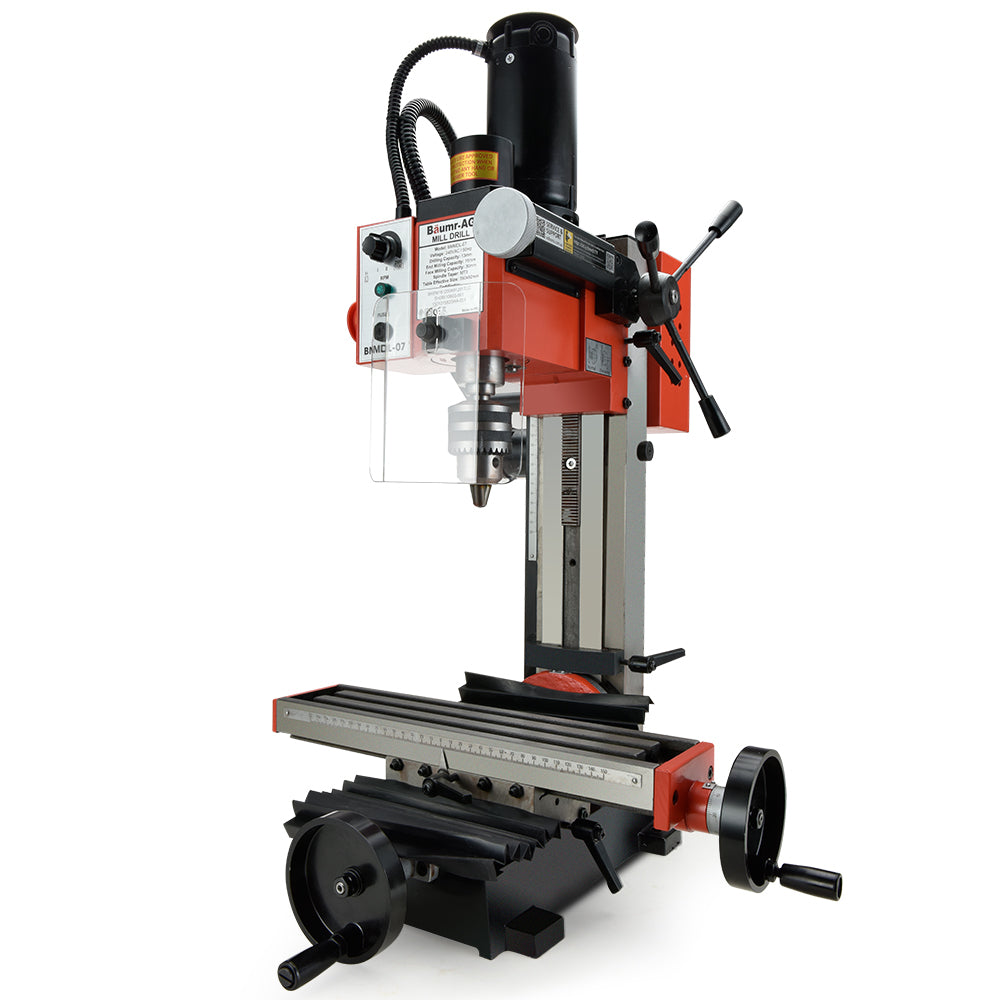

The Baumr-AG BMMDL-07 Mini Mill Drill is a versatile and accurate tool especially designed for model engineers and hobbyists to effortlessly drill, deep mill and face mill. With a 350W DC motor and geared drive there’s no shortage of power on tap! There’s a 2-speed gearbox for optimal torque, and with a variable rotation speeds up to 2500rpm you can work with most metals.

There’s a fine feed for milling and a coarse feed for drilling, and when accurate positioning of holes is required you can use the quick adjust depth limiter. The Baumr-AG boasts a sturdy cast iron body and base that only takes up a small footprint on your workbench.

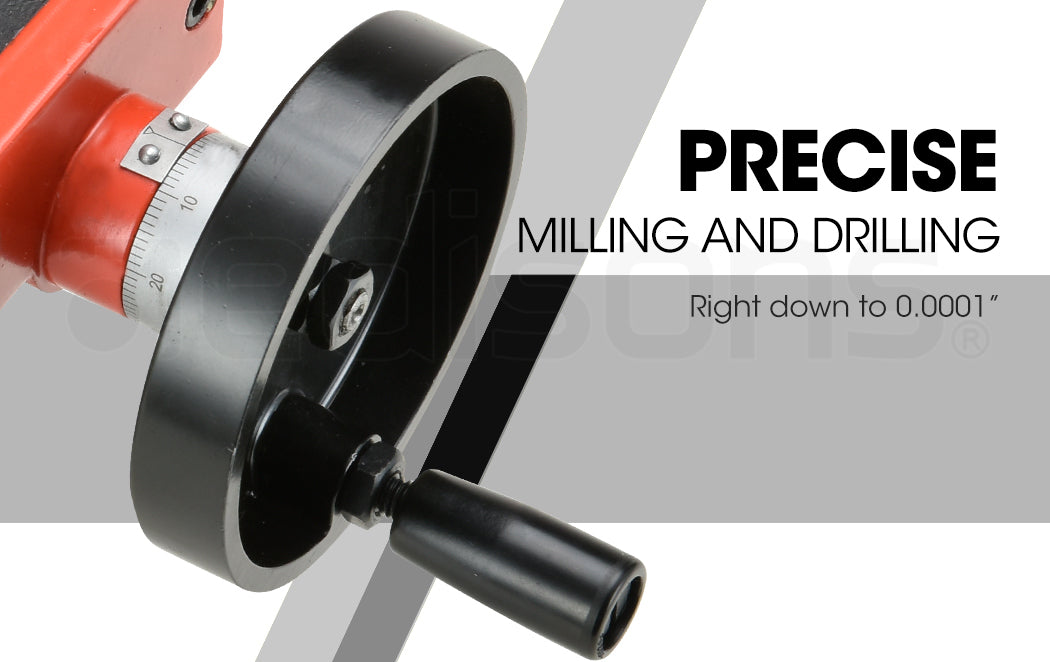

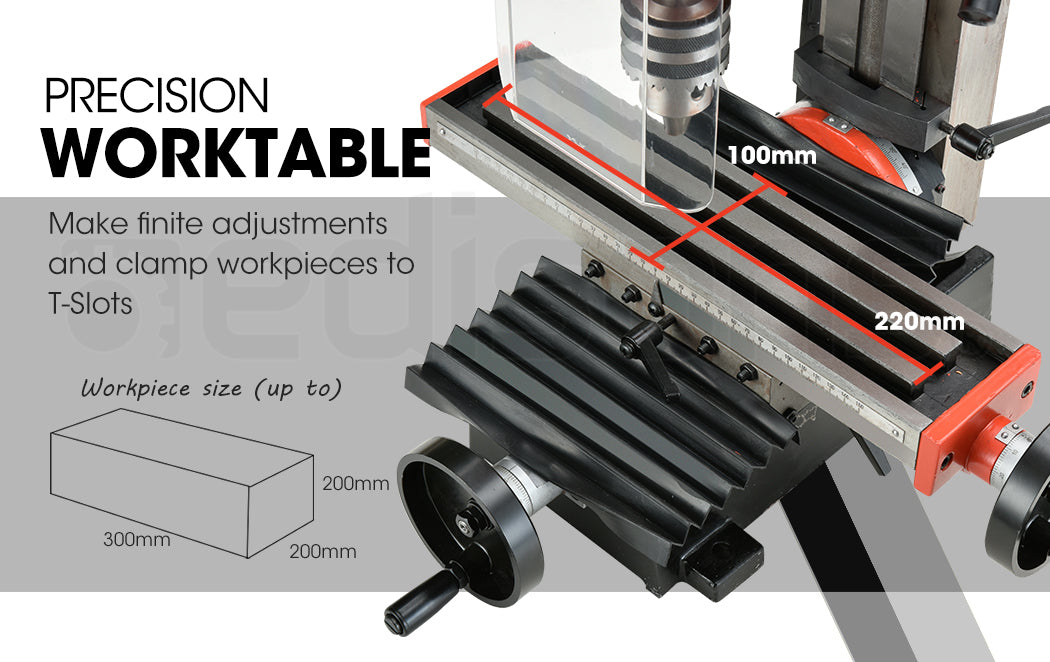

The precision machined working table has T-slots to facilitate clamping of workpieces of up to 300x200x200mm, and handwheels ensure precision movement of the X and Y axis within a thousands of an inch. The column can conveniently be tilted either side up to 45 degrees from vertical.

For optimal safety there’s a transparent spindle guard, rubber ways chip guard and shut off switch. The Baumr-AG comes with a 14mm keyed drill chuck supplied, and is ready to accept MT3 collets for securing a wide range of cutting tools. Slice through your next project with the Baumr-AG Mini Mill Drill!

  • Powerful 350W DC motor
  • Versatile spindle speed of up to 2500RPM
  • Sturdy cast iron design with compact footprint
  • Geared drive

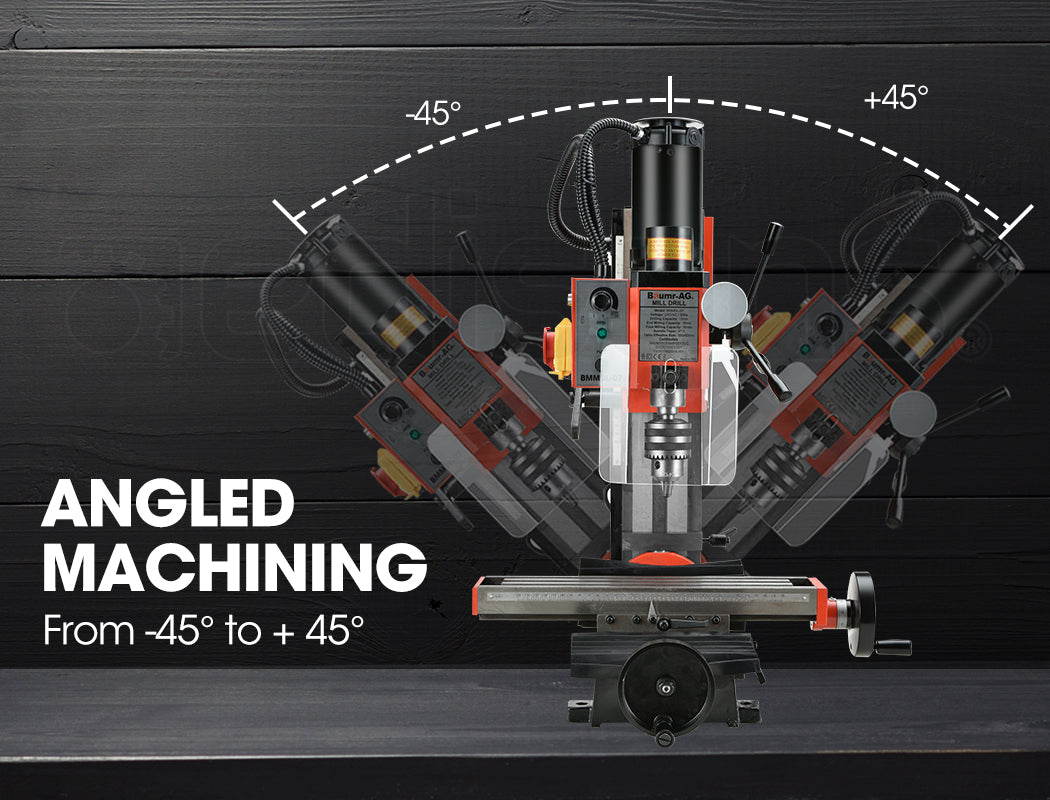

  • Head tilt from -45° to +45°

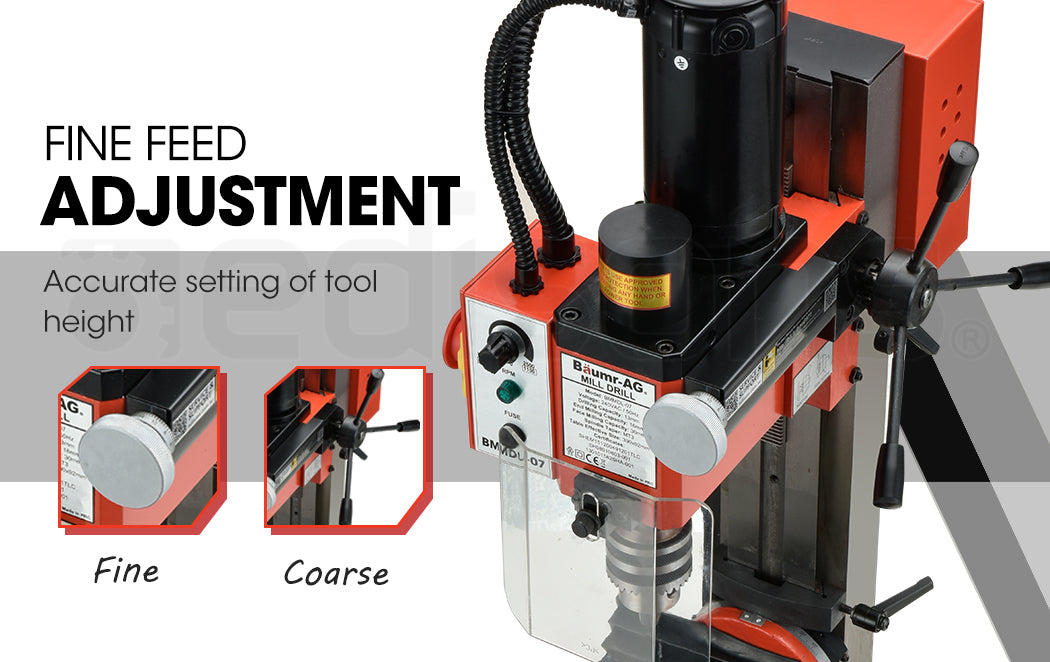

  • Coarse and fine feed adjustment
  • Adjustable depth stop
  • Transparent spindle guard
  • Rubber ways chip guard
  • Safety shut off switch

  • Brand: Baumr-AG
  • Model: BMMDL-07
  • Output Power: 350W
  • Voltage: 240V AC
  • Power Plug: Australian Standard
  • Drilling Capacity: 13mm
  • End Mill Capacity: 16mm
  • Face Mill Capacity: 30mm
  • Tilt angle: -45 to +45
  • Max X Axis Table Travel: 220mm
  • Max Y Axis Table Travel: 100mm
  • Max Z Axis without collet: 180mm

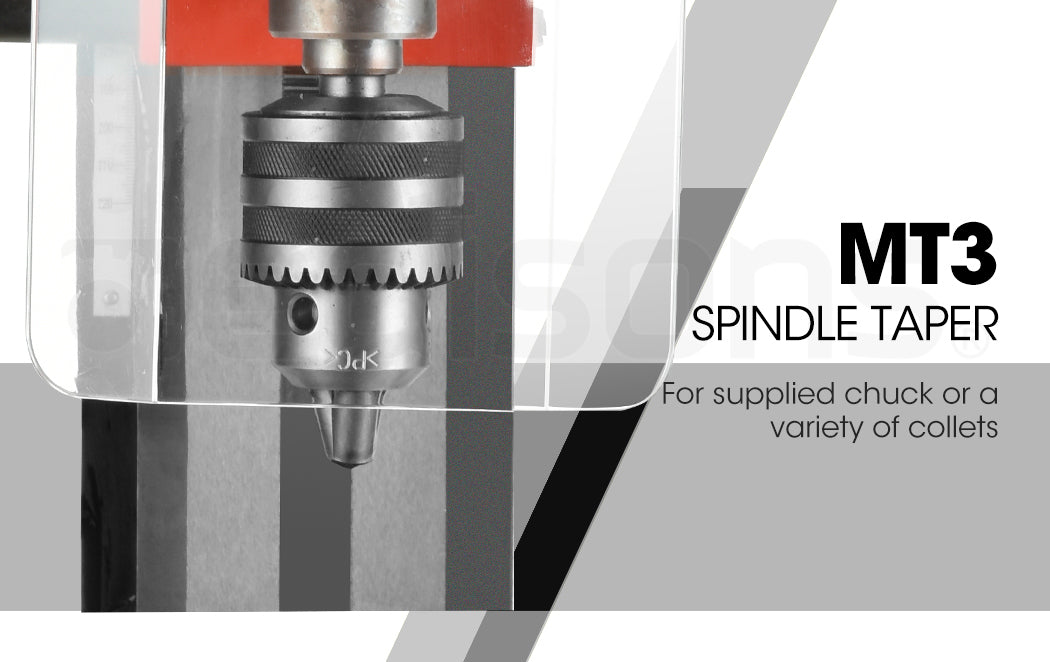

  • Spindle Taper: MT #3
  • Throat: 167mm

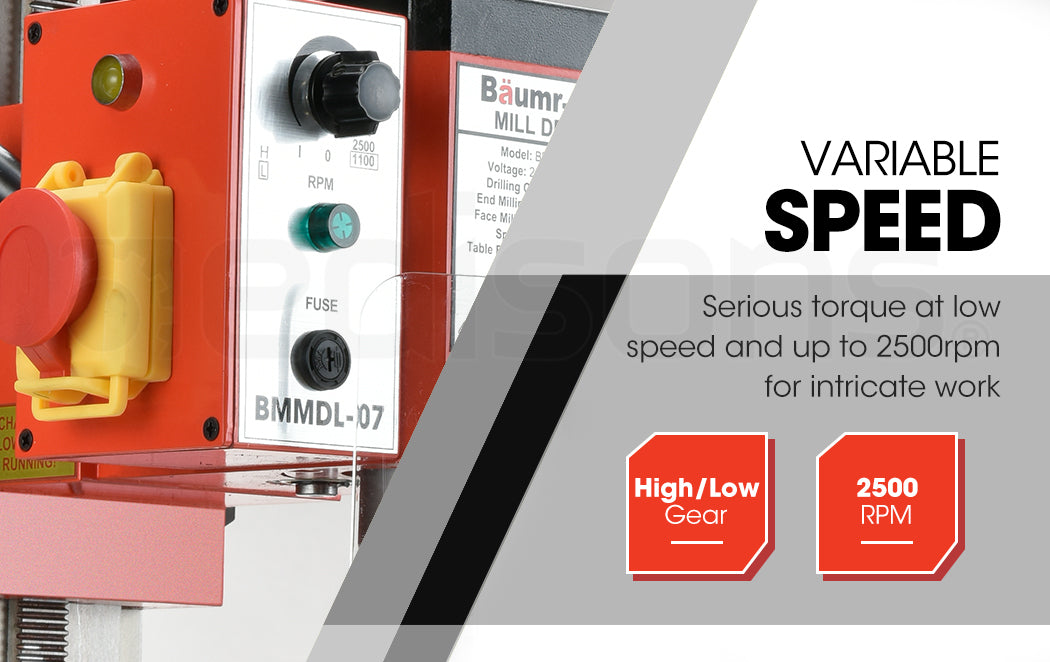

  • Spindle Speed: Low :0~1000 RPM; High: 0~2500 RPM
  • Swing: 324mm
  • Spindle to Table: 292mm
  • Spindle to column: 162mm
  • Work Table Load Capacity: 25kg
  • T-slot size: 12mm
  • Table Size: 390x92 mm
  • Reach of the Chuck Center: 167mm
  • Assembly Required

IN THE BOX

  • 1 x Baumr-AG Mini Mill Drill
  • 1 x 14mm Drill Chuck
  • 1 x Lubrication Bottle
  • 1 x Assembly Kit
  • User Manual is accessible online

SIZE & WEIGHT

  • Carton Dimensions (W x L x H): 47 x 52 x 70cm
  • Carton Weight: 61kg

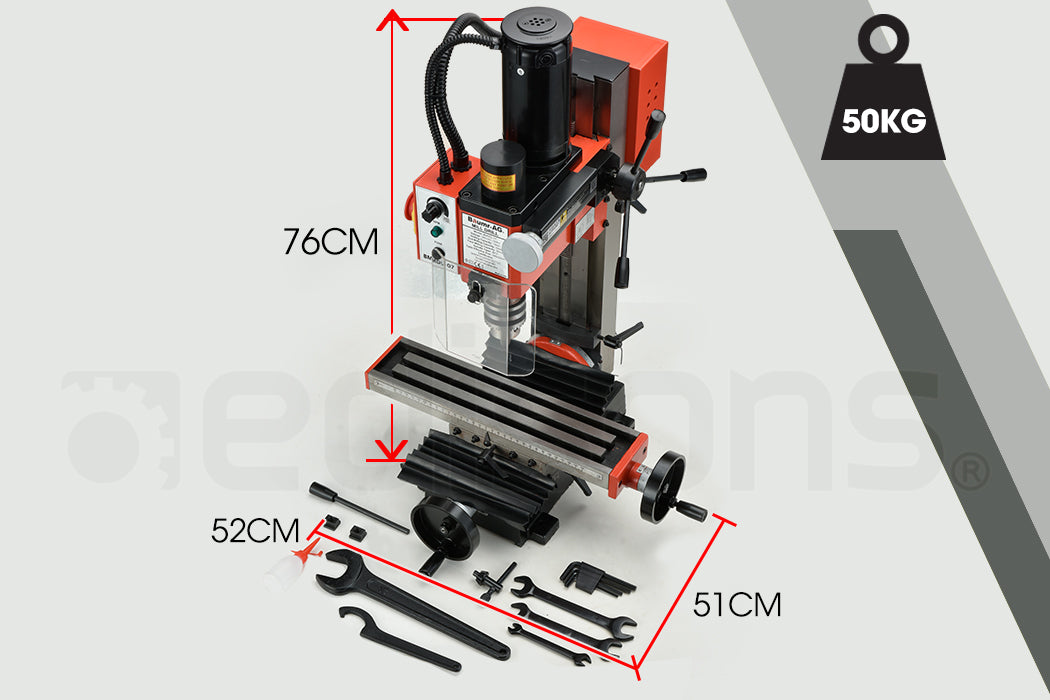

  • Product Dimensions (W x D x H): 51 x 52 x 76cm
  • Product Weight: 50kg
