NNEMB 400W 7x12 Variable-Speed Mini Metal Lathe with Cutting Tool Set-Drill Chuck

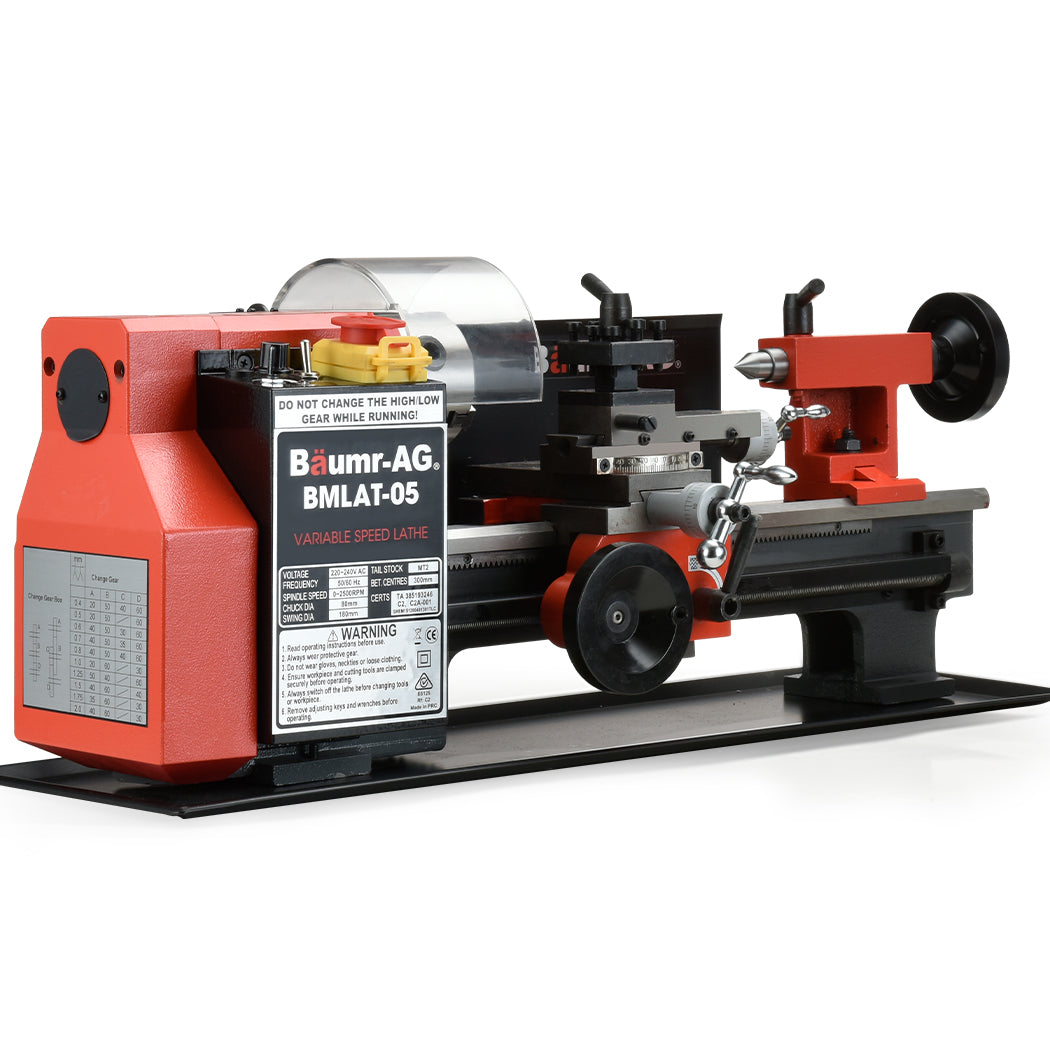

The Baumr-AG BMLAT-05 is the ideal metal lathe for model makers, toolmakers, and the weekend machinists who would like a versatile and reliable machine that doesn’t take up too much real estate in the workshop.

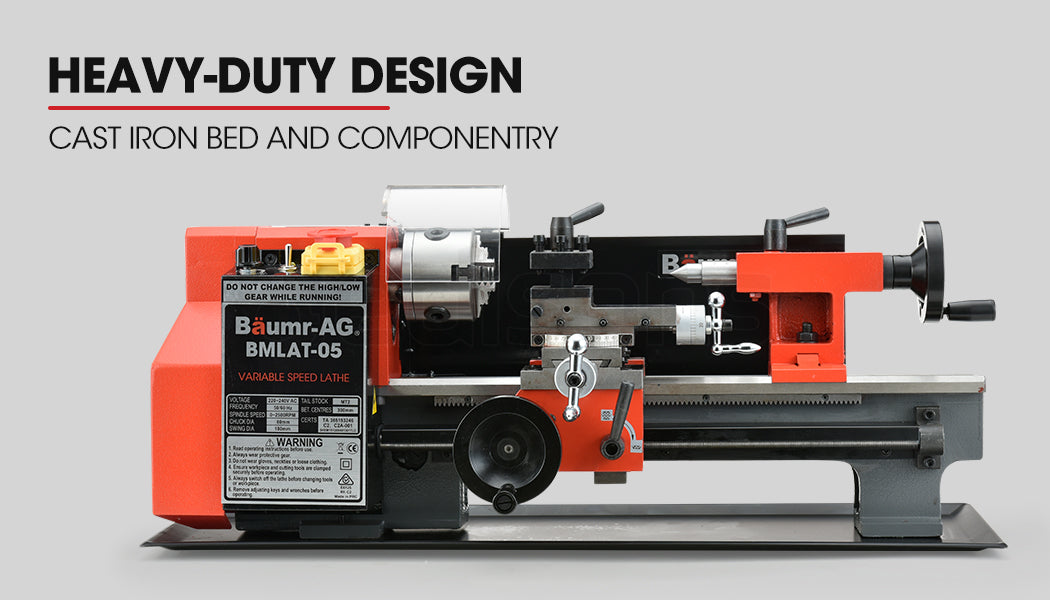

The Baumr-AG is a sturdy, heavy-duty unit with its cast-iron bed and componentry. With high and low gear and infinitely variable speeds right up to 2500rpm, this mini metal lathe makes short work of drilling, cutting, threading and turning. It will also operate at all speeds in reverse, which makes left-hand threading an option. With 400W of power on tap and adjustable powerfeed, you’ll be making small parts, threaded parts, fittings and dies from brass, bronze, aluminium and steel with ease.
It has a fully featured carriage, finely machined ways, self-centring 3-jaw chuck, a MT3 spindle taper and a MT2 tailstock taper and includes a thread range of 0.4-2.0mm (10 thread pitches). The 5/16-inch capacity tool post allows up to four cutting tools to be mounted at once for simple substitutions mid-project. The Baumr-AG has a chip tray & splash guard and emergency stop button for optimal safety credentials.

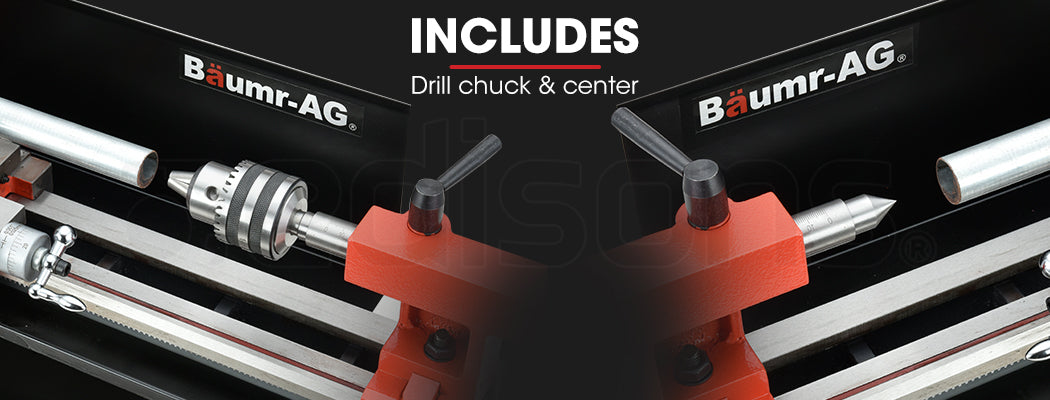

This Elite Edition comes complete with an accessory set that includes 5 x 8mm carbide tipped cutting tools, a 13mm tailstock drill chuck and headstock centre.
With sharp direct-to-you pricing that cuts out the middlemen, the Baumr-AG BMLAT-05 is the smart solution for hobbyists and modelers looking to add intricate detail to their next project!
- 400W power for smooth operation

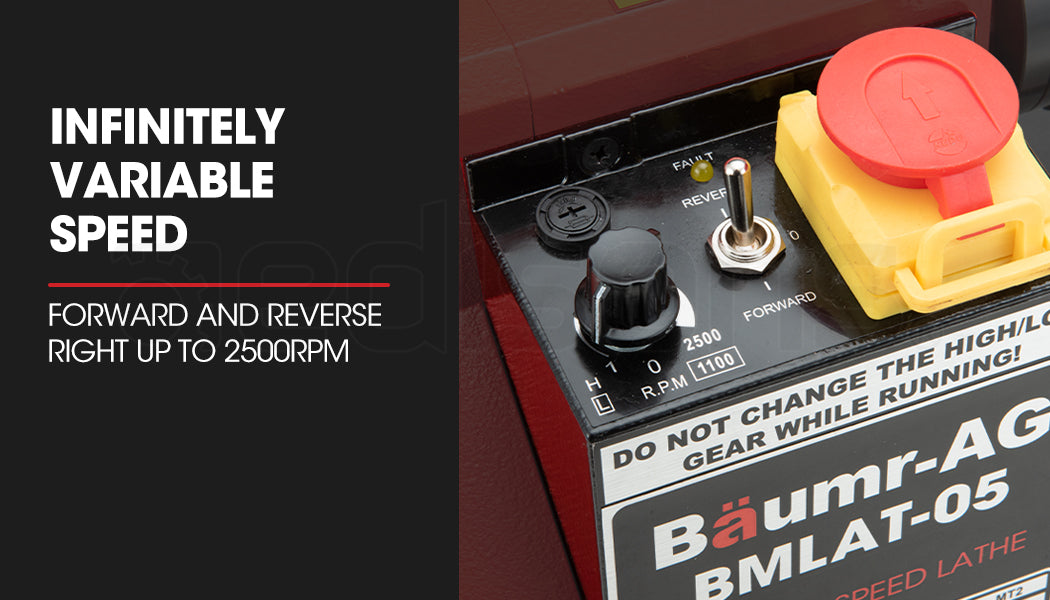

- Variable speed 50-2500rpm
- Forward and reverse rotation
- Heavy Duty cast iron bed

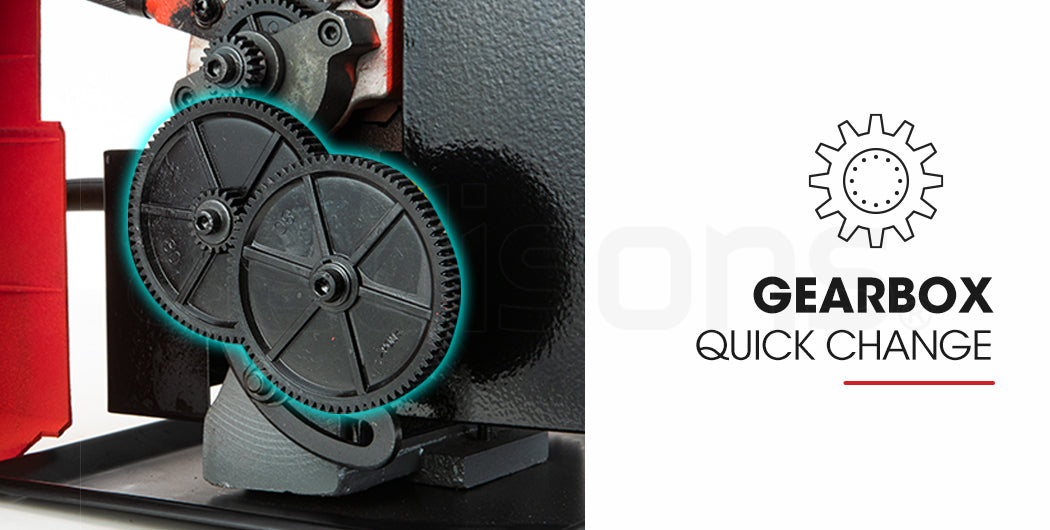

- Quick-Change Gearbox
- Fully Featured Carriage

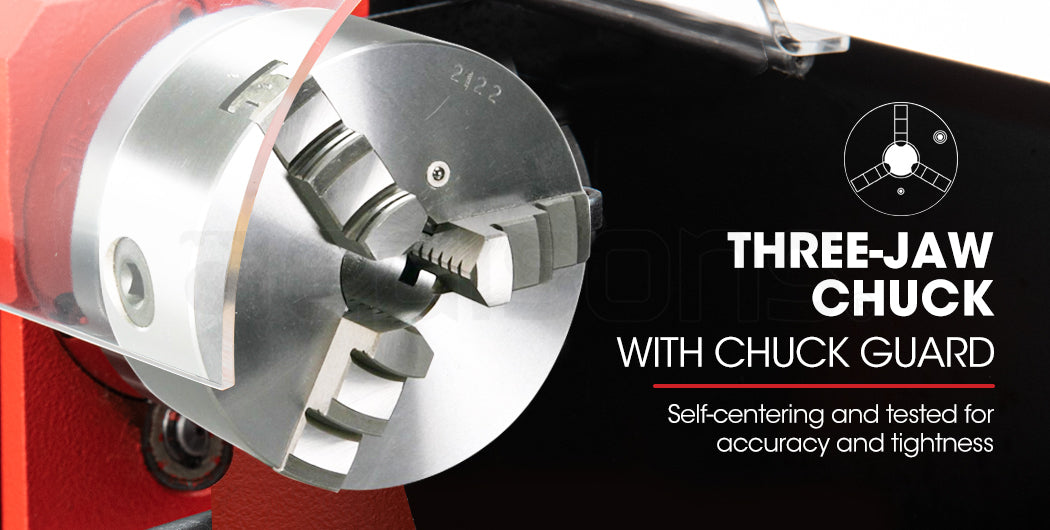

- 80mm 3-Jaw Chuck
- Chip Tray and Backsplash Guard
- Includes 5 cutting tools, drill chuck & centre
- Brand: Baumr-AG
- Model: BM-LAT05
- Power: 400W
- Input Voltage: 240V/50Hz
- Distance Between Centers: 300mm
- Swing Over Bed: 180mm
- Speed (High Gear): 100-2500rpm
- Speed (Low Gear): 100-1100rpm
- Swing Over Cross Slide: 65mm
- Spindle Bore: MT3
- Tailstock Taper: MT2
- Spindle Bore: 20mm
- Cross Slide Travel: 65mm
- Compound Slide Travel: 55mm
- Metric Range of Threads: 0.4-2.0mm (10 Thread Pitches )
- Chuck Diameter: 80mm
- Power Plug: Australian Standard
IN THE BOX
- 1 x Brand: Baumr-AG Mini Metal Lathe
- 1 x 60° MT2 Centre
- 1 x Tool kit
- 1 x Lubricant bottle
- 5 x Cutting tools (DIN 4971R, DIN 4975R, DIN 4980L, DIN 4980R, DIN 4981R)
- 1 x 1-13mm Keyed Drill chuck
- 1 x Tailstock centre
- User Manual is accessible online
SIZE & WEIGHT
- Carton 1 Weight: 40kg
- Carton 2 Weight: 1.5kg

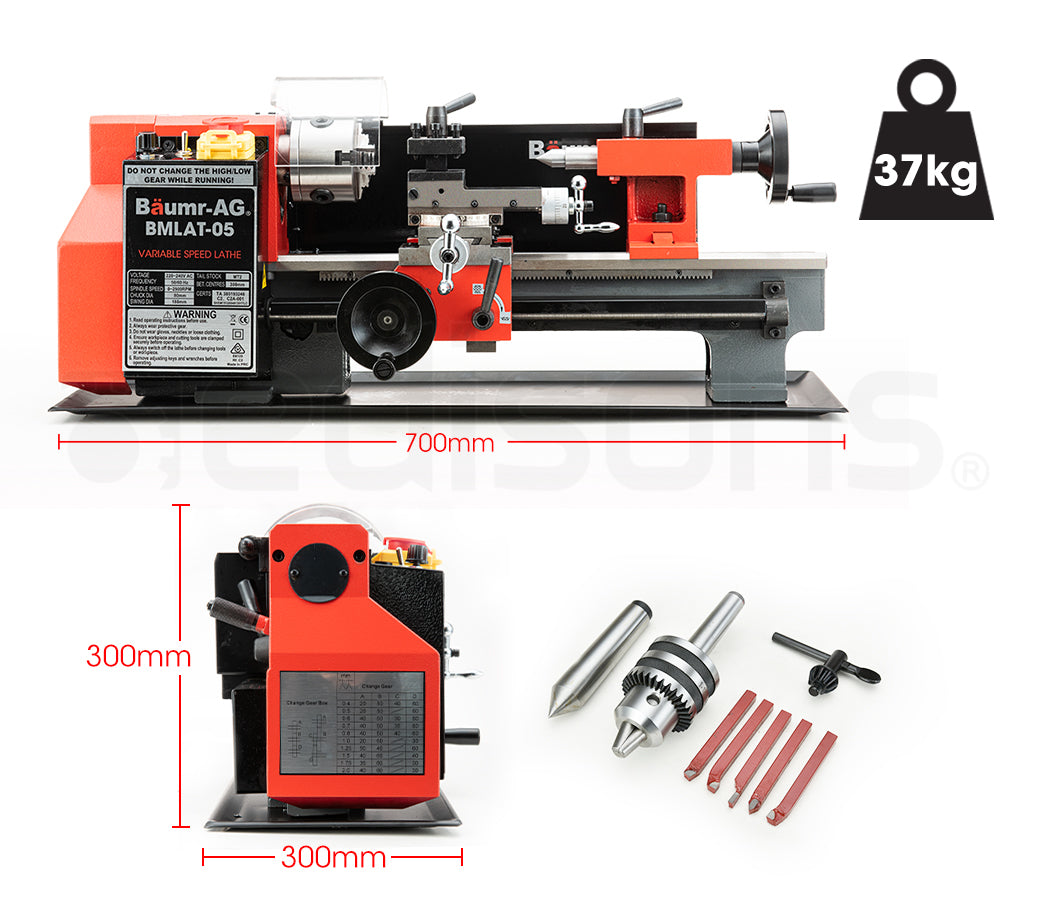

- Product Dimensions (W x D x H): 70 x 30 x 30cm
- Product Weight: 37kg
