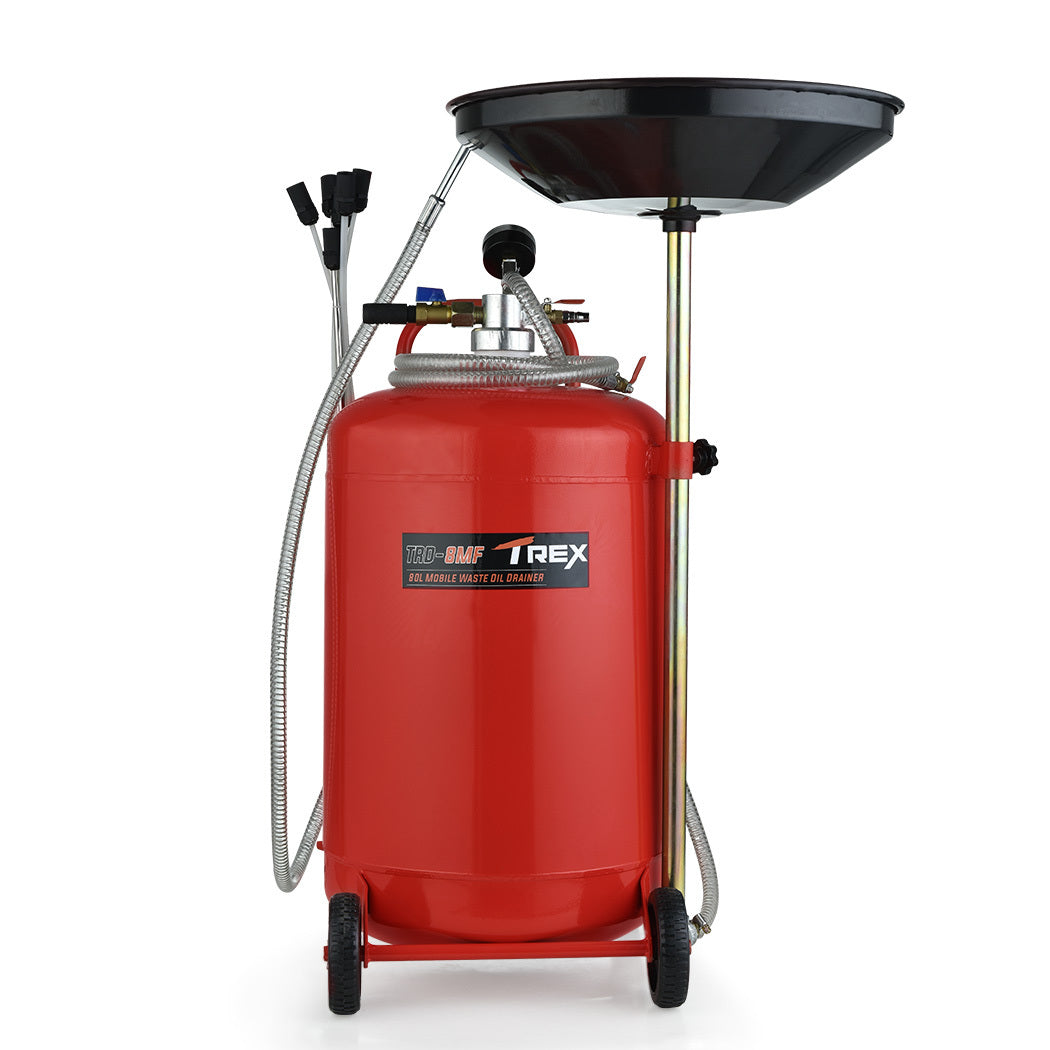

NNEMB 80L Mobile Waste Oil Drainer Tank-Pneumatic-Telescopic-Extractor Probes-Workshop
Time for a better way of working? The T-REX TRD-8MF Mobile Waste Drainer and Extractor boasts a rugged construction with a large powder-coated 80L holding tank. It's Multifunction design makes it ideal for quickly and efficiently draining, sucking, storing and transferring of motor oil, transmission fluid, coolant and other fluids from motor vehicles.

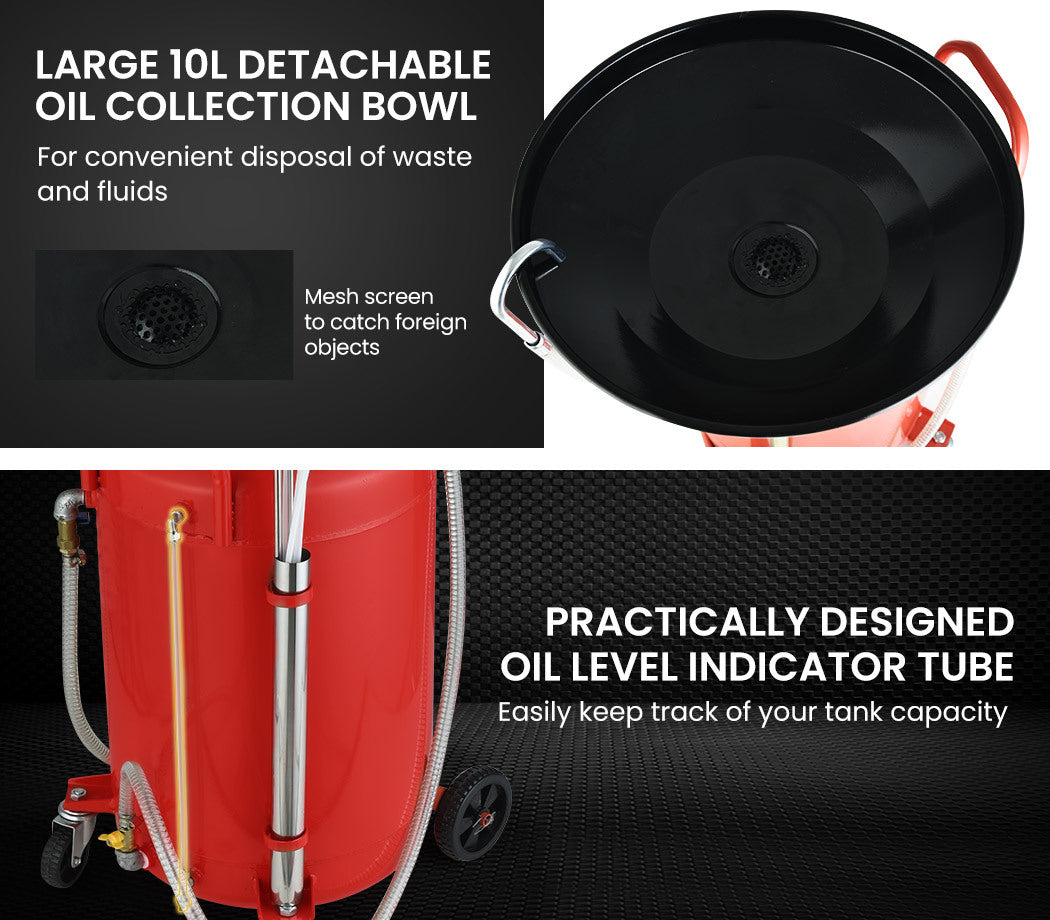

It features a large 10L detachable oil collection pan with a height adjustable telescopic lifting shaft that easily adjusts to fit different requirements. The commercial-grade T-REX can be easily positioned under the car, as well as being suitable for use in a variety of other automotive workshop applications.

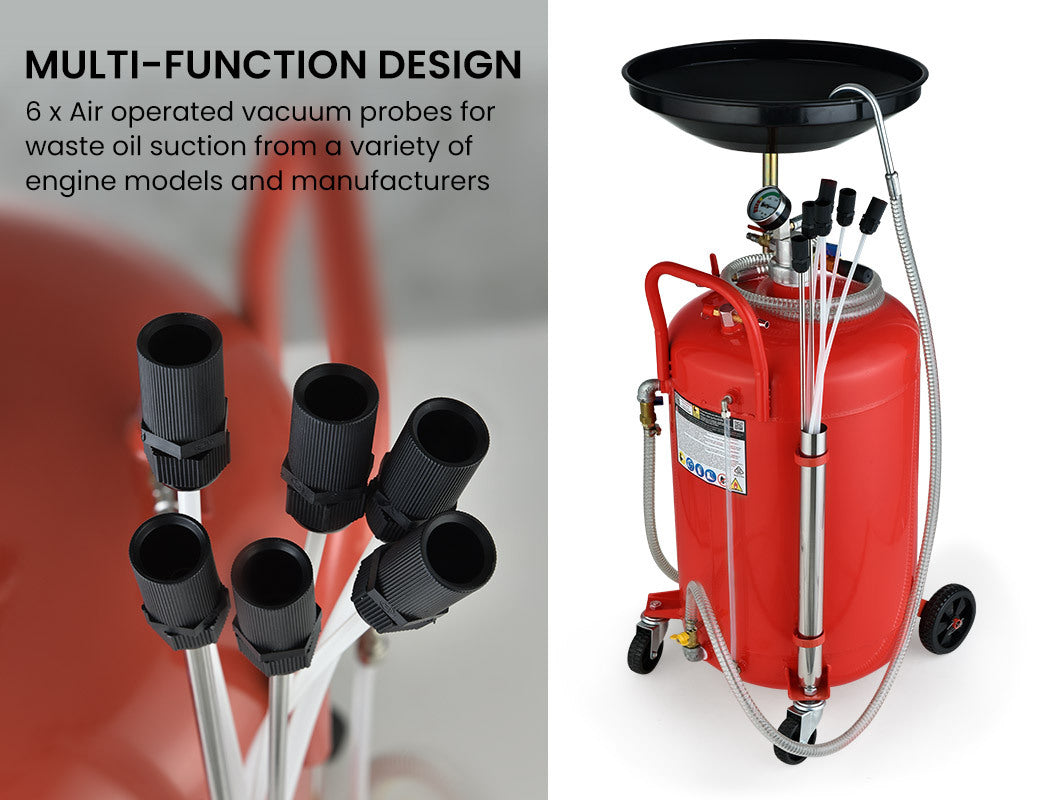

Its multifunction design allows for traditional gravity assisted waste oil extraction, or you can connect an air compressor for fast pneumatic vacuum suction directly from a vehicle transmission via a dipstick tube. It comes equipped with 6 different sized dipstick tubes for waste oil suction, in order to suit almost every engine model and manufacturer!

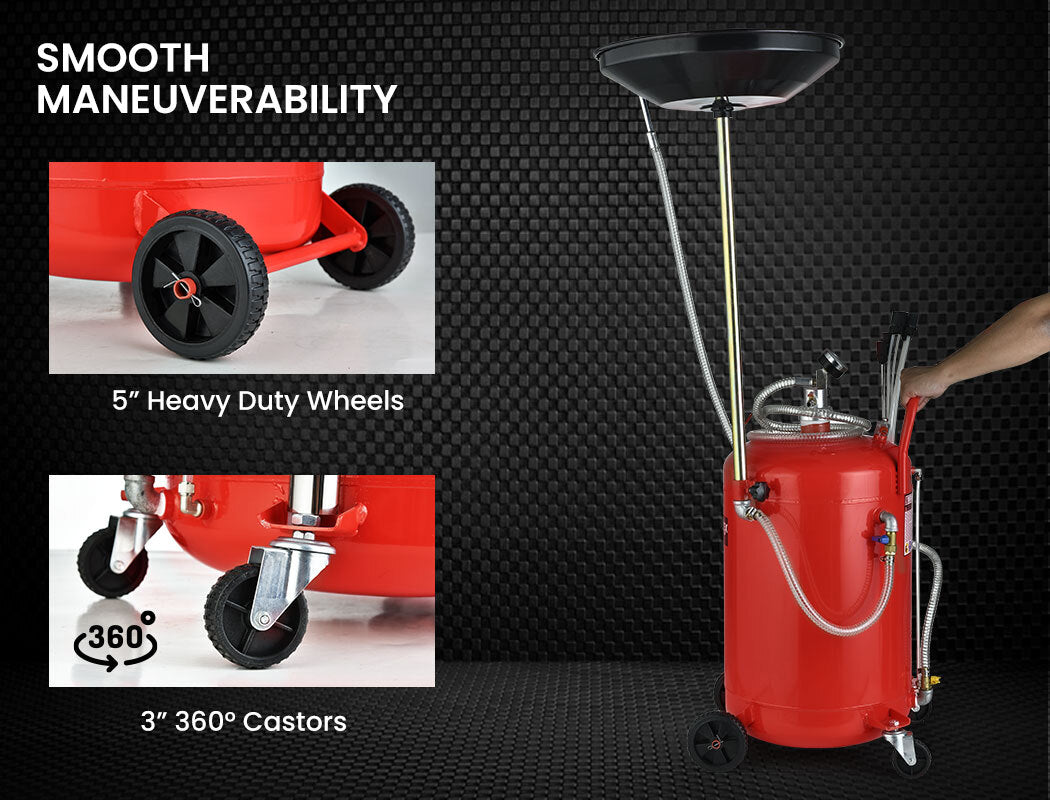

The portable unit manoeuvres on a combination of two 5' heavy duty wheels and two 3 inch 360° swivelling castors for smooth and quiet mobility over shop floors.
A built-in oil level indicator allows you to easily keep track of your tank capacity. The steel wire reinforced drain pipe is abrasion, heat and ozone resistant.

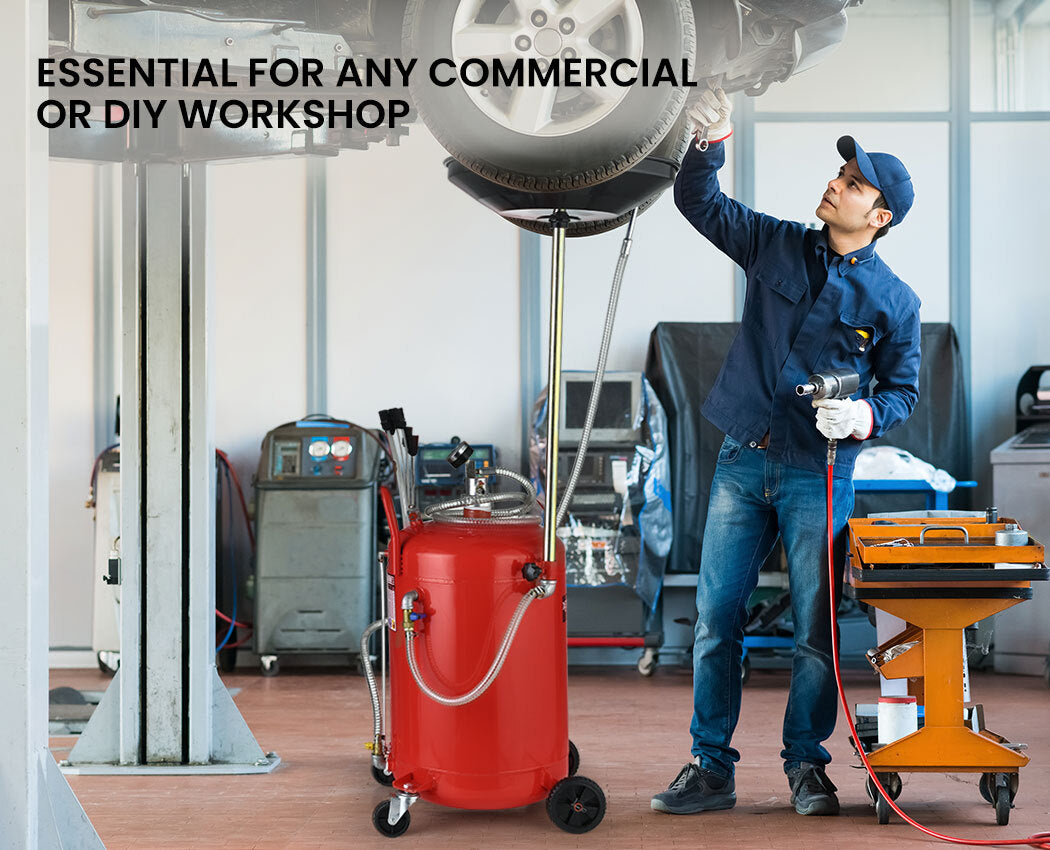

Avoid spills and mess with a T-REX waste oil drainer and extractor - the essential tool for any commercial or DIY workshop!

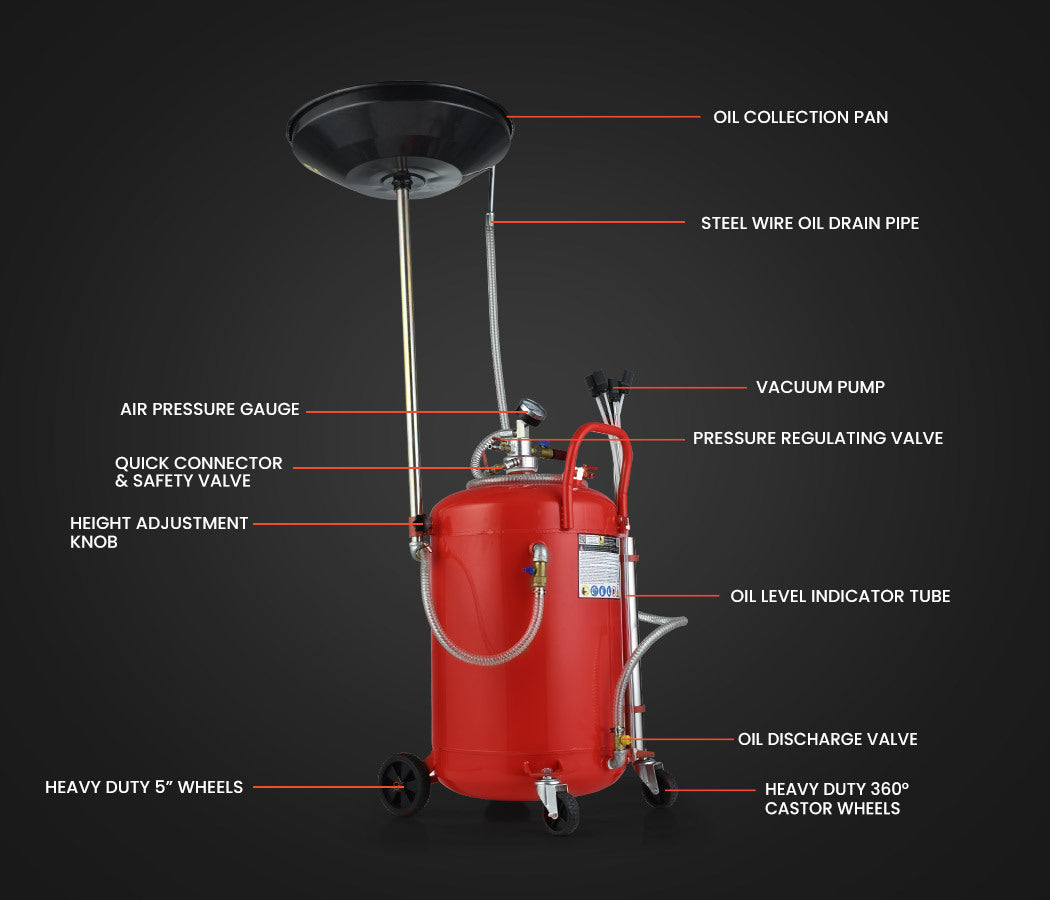

- Large 80L capacity
- Multi function design
- Rugged powder coated tank
- Telescopic lifting shaft
- 6 x suction probes
- Standard ¼ NPT air compressor connection

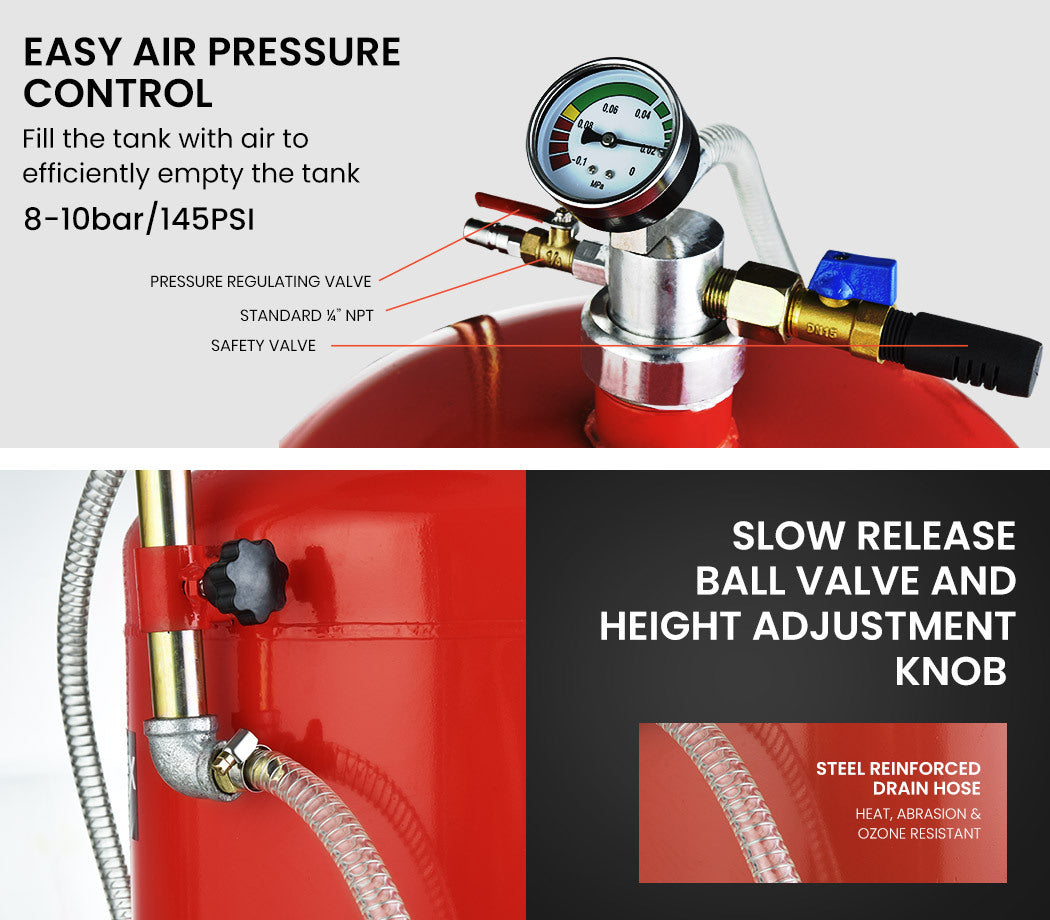

- Air relief valve prevents over-pressurisation
- 8-10 Bar air pressure
- Large 10L oil collection pan
- Two 3” 360° castor & two 5” heavy duty wheels
- Easy manoeuvrability
- Oil level indicator tube
- Slow release valve
- Steel wire oil drain pipe
- Easy operation
- Brand: T-Rex
- Model: TRD-8MF
- Tank Capacity: 80L
- Medium: Engine oil and gear oil
- Air Pressure: 1-2.5bar
- Max air pressure: 3bar / 45PSI

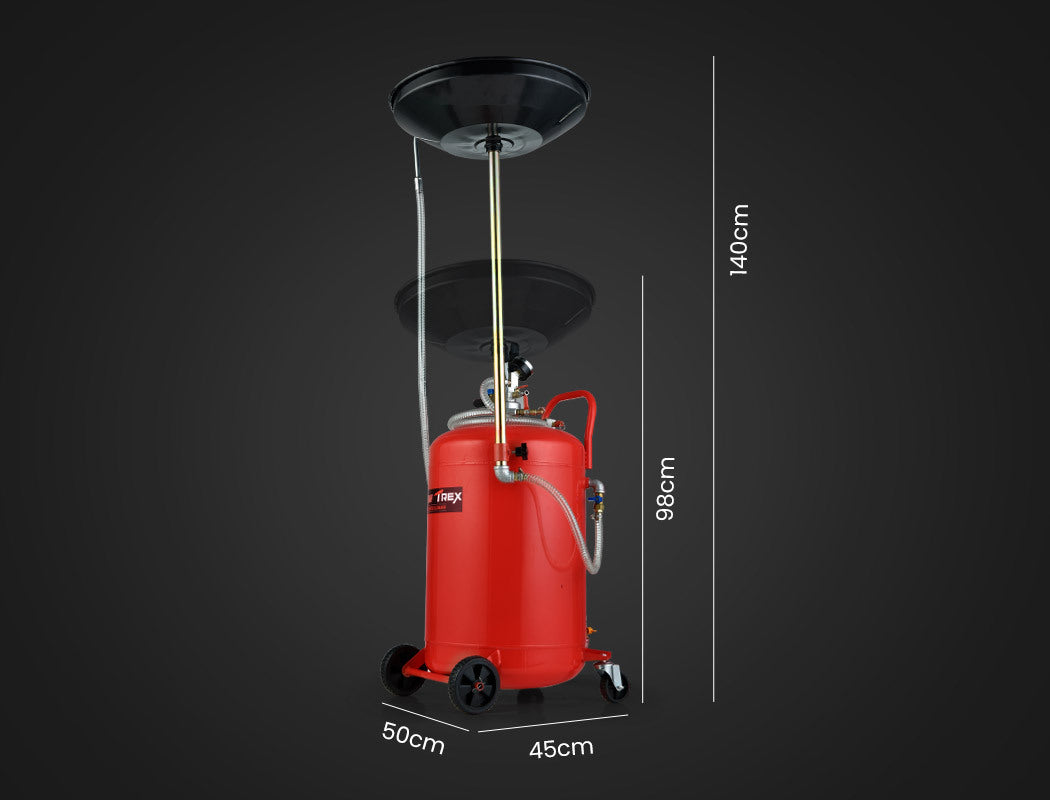

- Height range: 98-140cm
- Hose: 1.5m discharge hose
- Wheels: 3” 360°, 5” fixed
- Degree of vacuum: 0-0.8Pa
- Note: Assembly Required
IN THE BOX
- 1 x TRD-8MF Mobile Waste Oil Drainer
- 2 x 3'' swivel castor wheels
- 2 x 5' wheels
- 1 x Oil pipe/lifting shaft
- 6 x Oil sucker probes
- 1 x Oil sucker probe holder
- 1 x Outlet pipe
- 1 x Ball valve switch
- 1 x Oil collection pan
- User Manual is accessible online
SIZE & WEIGHT
- Product Dimensions (W x L x H): 76 x 168 x 73cm
- Product Weight: 39kg
- Carton Dimensions (W x L x H): 45 x 80 x 42cm
- Carton Weight: 20kg
