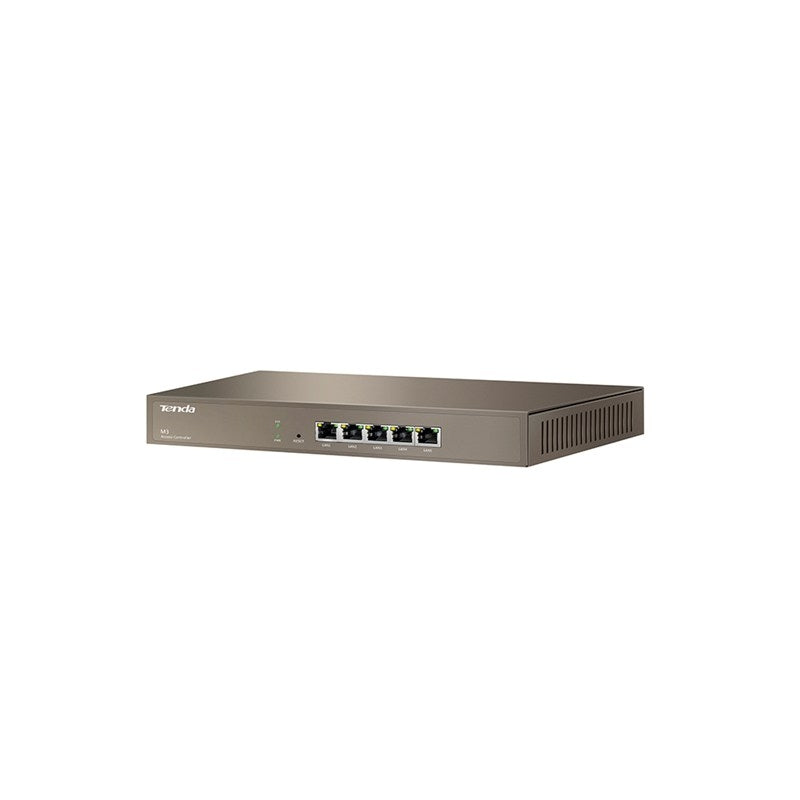

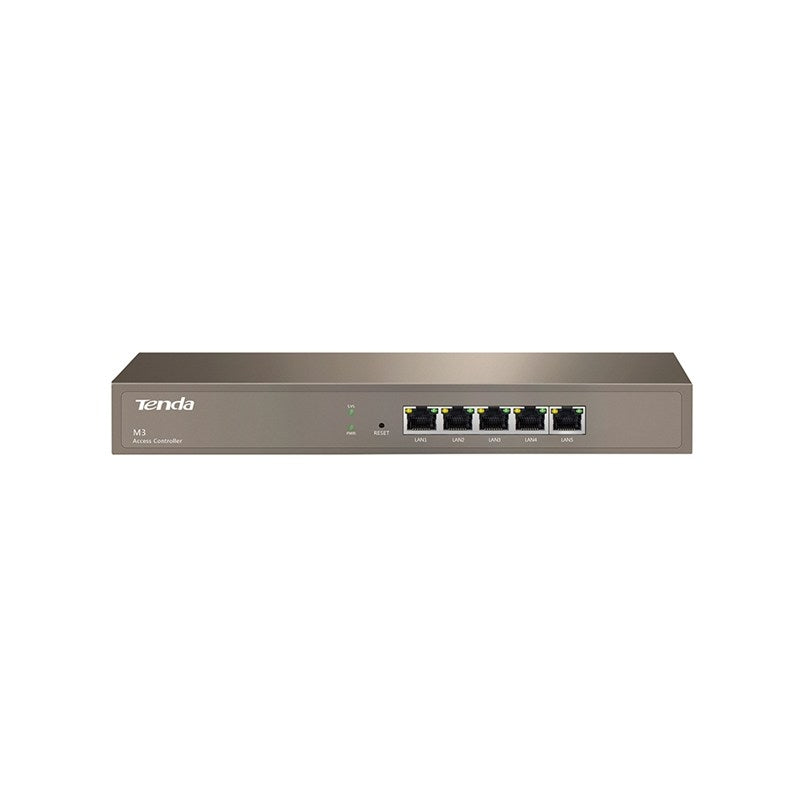

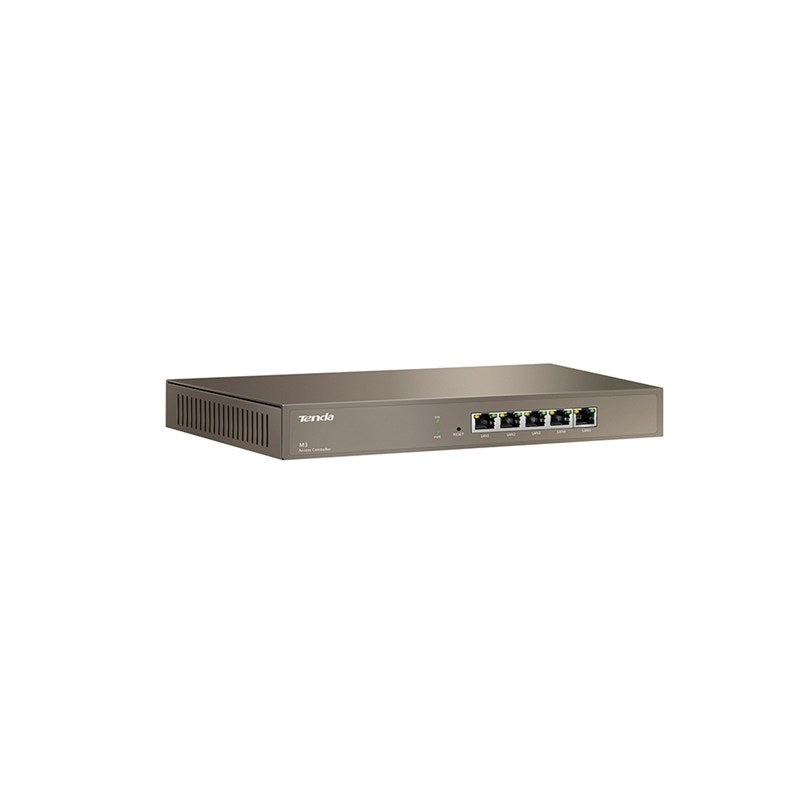

NNEDSZ M3 5-Port Gigabit Multi-WAN VPN Router up to 128 APs
M3 is deployed in the branch network mode, and you simply connect the M3 to the core switch without changing your network topology. M3 can manage and monitor all the indoor AP such as i6 in the network. You can edit the description, SSID, channel, security, output power for APs.The built-in 5 gigabit Ethernet port provides faster data transfer as high as 10x data speeds as traditional fast Ethernet ports.
Maximum Manage number of Aps | 128 |
Dimension | 210 × 130 × 30mm |
Maximum Consumption | 9W |
Interface | 5 × GE LAN Ports |
Button | 1 × Reset |
Power Method | AC100~240V 50/60Hz,0.6A |
LED indicator | SYS, PWR |
Standard & Protocol | IEEE 802.3ab/3u/3 |
LAN Settings | Static IP |
DHCP Server for Aps | Support |
VLAN | Support |
System Tool | Time & Date Backup & Restore Configuration Reset to factory settings Reboot Access Controller Firmware Upgrade Administrator Management System Log |
Package Content | 1 × Access Controller M3 1 × Power Cord 4 × Mats |
Temperature | Operating Temperature: -10°C~45°C Storage Temperature: -30°C~70°C |
Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
Certification | FCC/CE/Rohs |
Product Contents:
1 x Tenda M3 5-Port Gigabit Multi-WAN VPN Router up to 128 APs
